Wire EDM Machining

Wire EDM (Electrical Discharge Machining) is a versatile and highly precise manufacturing process that uses a thin, electrically charged wire to cut through conductive materials. With its ability to produce intricate and highly accurate parts, Wire EDM has become a go-to solution for industries that require exceptional precision and fine detail. MYT Machining specializes in Wire EDM services, ensuring that each part is crafted to meet the tightest tolerances with minimal material waste.

What is Wire EDM Machining?

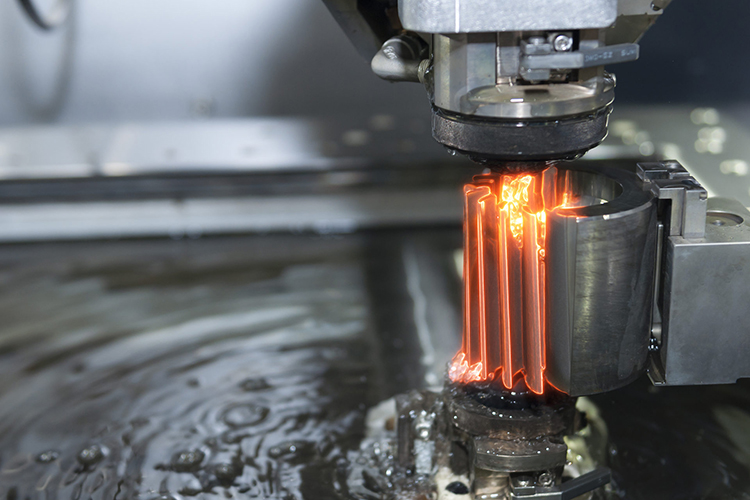

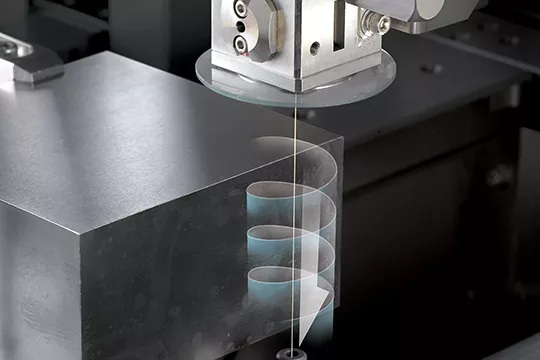

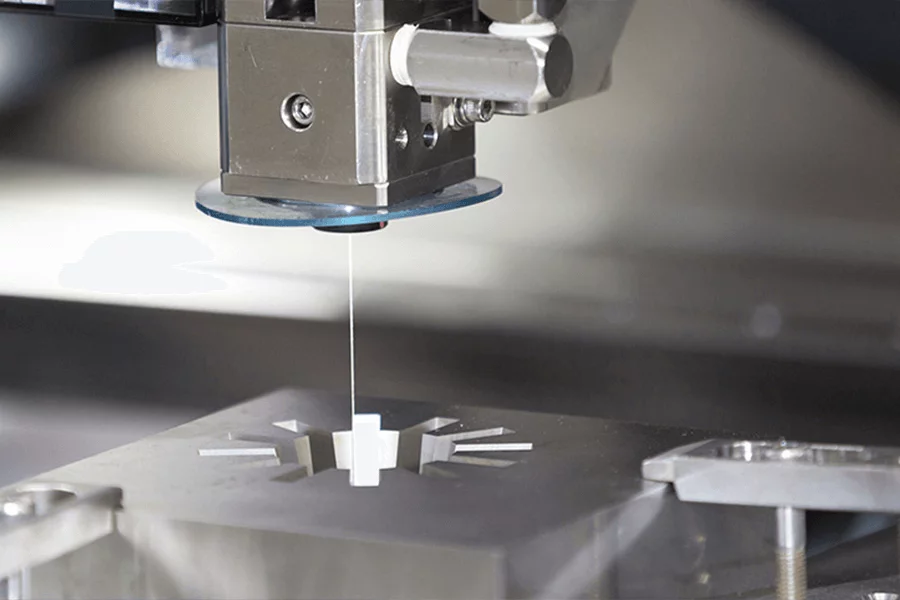

Wire EDM is a non-contact machining process where an electrically charged wire cuts through a workpiece by generating a series of rapid, controlled electrical discharges. The wire, typically made from brass, moves along predefined paths and erodes material from the workpiece, creating a precise cut. This process is ideal for producing complex shapes and components with tight tolerances, especially when traditional cutting methods cannot achieve the required precision.

Wire EDM is particularly advantageous when working with hard materials, such as tool steel, titanium, and tungsten, that are difficult to machine with conventional methods. The wire’s small diameter and ability to cut with minimal force make Wire EDM an excellent choice for delicate parts or intricate geometries.

How Does Wire EDM Work?

1. Setup: The process begins by mounting the workpiece on a CNC machine. The workpiece is then submerged in a dielectric fluid (typically oil or deionized water) to facilitate the discharge process and prevent overheating.
2. Wire Selection: A thin wire, usually made of brass, is selected for its electrical conductivity and precision. The wire is fed through the workpiece and controlled by the CNC system.
3. Electrical Discharge: As the wire moves along the programmed path, electrical discharges occur between the wire and the workpiece. These discharges erode the material, producing the desired cut.
4. Material Removal: The dielectric fluid flushes away the eroded material, ensuring that the cut remains clean and the wire does not come into contact with the workpiece.
5. Finishing: After the cut is completed, the workpiece may undergo additional finishing processes to achieve the required surface finish or dimensional accuracy.

Benefits of Wire EDM

• High Precision: Wire EDM offers exceptional accuracy, capable of achieving tolerances as tight as ±0.0001 inches. This makes it perfect for applications requiring intricate designs and fine details.
• Complex Geometries: Wire EDM can cut extremely complex shapes, including sharp internal corners, small holes, and thin walls that would be difficult to achieve with traditional cutting methods.
• Minimal Material Distortion: Since Wire EDM is a non-contact process, there is no physical force applied to the workpiece, minimizing distortion or stress.
• Hard Materials: Wire EDM excels at cutting hard and brittle materials, including hardened steels, exotic alloys, and carbide, which are difficult or impossible to machine using other methods.
• Clean Cuts: The process results in clean, burr-free cuts, reducing the need for additional finishing processes.

Industries We Support for EDM Services

We provide EDM cutting services across multiple sectors, including:

• The Aerospace & Defense industry
• Designing and Producing Medical Products
• Creating Tools & Dying
• Automobiles & Sports Cars
• These include electronics and micro-components.

MYT’s Machining Wire EDM Capabilities

Achieving accurate cutting is essential for any job. By using the latest EDM wire machines, we can produce complex geometries with razor-sharp edges and high repeatability.

Multipurpose Materials

Our EDM wire cut machines can handle a wide range of conductive materials, such as:

• Wire EDM Aluminum
• Titanium
• Carbide
• Carbon steel that is hardened.
• Inconel
• Copper alloys

Tolerances

• Tolerances: ±0.0001″
• Surface finishes smooth enough for 8 Ra µin are available.
• Multiple EDM wire sizes are available for various job requirements

Key Advantages of Wire EDM Machining

Ultra-High Precision

Wire EDM can produce micro-scale parts with extreme precision, perfect for industries with tight tolerance needs.

3D Objects

Produce shapes using additive manufacturing that can’t be handled by traditional machining tools. All parts of the structure were untouched by heat-related damage. There is little risk of heat damage or mechanical stress for you, as there’s no direct contact. It Only Costs a Little for Small Production

Because there’s no tooling involved, EDM wire cutting is economical even for prototypes or low-volume runs.

The Wire EDM Machining Process

Look into the Step-by-Step Overview

We use your detailed CAD file as our starting point.

1. Machine Setup – The EDM wire machine is programmed, and the correct wire EDM diameter is selected.
2. Wire Feed – An electrically charged vapor wire is led through the guides.
3. EDM Cutting – Electrical discharges erode material along the programmed path.
4. The Flushing System flushes waste through the use of a dielectric fluid.
5. Final checking – Each item gets a thorough check for its specifications, how it matches, and its even appearance.

Making the Proper EDM Wire Size Decision

How fine you want to cut and how fast depends on how wide your EDM wire is.

• Wires from 0.004″ to 0.006″ are good for small radii and detailed pieces
• Most applications use gauges 0.010″–0.012.
• Rough cuts or hard materials work effectively with this-sized wire.

Why Is MyT Machining a Good Choice?

When it comes to wire EDM manufacturing, quality, speed, and reliability matter. And MYT Machining Services can give you all these properties for every project.

This is what makes us stand out:

• State-of-the-art EDM wire machines
• The company has its own quality assurance employees.
• We have experts who have 15 or more years of experience in the machining industry
• It takes prototypes to get to actual production in large quantities.
• You can get your cinematography products fast and delivered across the country.

We are strongly focused on accuracy. Every client works with our team to guarantee that your parts are produced to precise specifications, all the time.

Custom Wire EDM Solutions

Are you looking for components that have to be made with extreme precision? Or is it possible that you have to cut strong, tiny metal shapes? No worries at all, because we have every possible solution for you. How we can help you in the process includes:

• You will be consulted by our engineers to find out your company’s needs.
• Optimize your design for wire EDM manufacturing
• Select the right EDM wire sizes and machine settings
• Ensure that things are the right size and that the surface looks good

Start Your Wire EDM Project with Confidence

If you require work to be performed quickly, accurately, and reliably, turn to MyT Machining. Our advanced wire EDM machining services are built to meet your toughest challenges. Contact us now for a custom quote or look through our complete list of machining services.

Ready to Get Started? Quote Request Available Now!

Let’s begin now. Submit your design file, and we will give you a prompt, trustworthy quote. We offer the technology and expertise to fulfill even the smallest or largest batches.

Just bring your next project to life with precision only Wire EDM Machining that we can offer.
