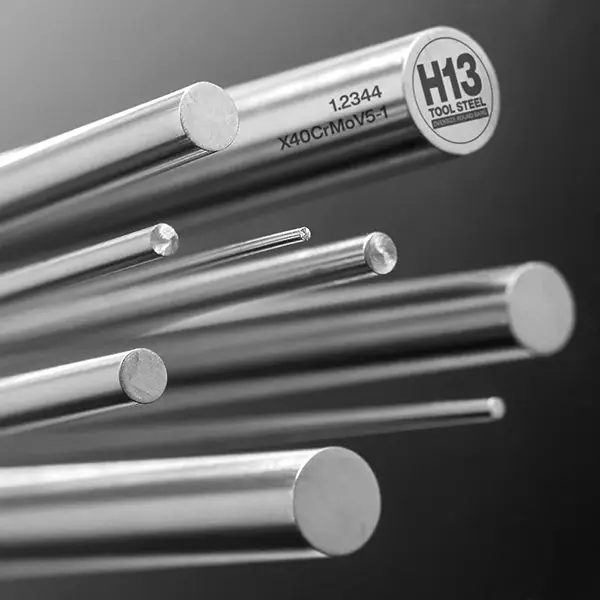

Looking for superior-grade Tool Steel H13 | 1.2344 | X40CrMoV5-1 – Annealed state for your high-performance tooling or hot-work applications? At MyT Machining, we offer the highest grade of H13 tool steel characterized by high toughness, high heat resistance, heat cycling stability, etc.
This annealed state H13 steel is designed to stand up to the rigors of extreme applications in precision machining processes, making it ideal to use with CNC machining needs where dimensional stability is required and wear resistance.
Why Select Tool Steel H13 | 1.2344 | X40CrMoV5-1 -Annealed?
Tool Steel H13, 1.2344 or X40CrMoV5-1, is a chromium-molybdenum-vanadium alloy hot-work steel. It is seen extensively in the mold, die, and extrusion tooling business due to its high temperature performance and repeated stress loading.
Major attributes of tool steel H 13:
- Great resistance to thermal fatigue and cracking
- Good strength and elasticity
- Better hardness and wear capability
- Ideal for heat-treated H13 CNC machining
- Awesome polishability and machinability
- H13 is used as a pre-machining or forming material best in a soft condition.
Uses of H13 | 1.2344 | X40CrMoV5-1 In the Industry
Owing to its excellent thermal and mechanical properties, Tool Steel H13 | 1.2344 | X40CrMoV5-1 – Annealed can be used in the following applications:
- Dies of Aluminum and Zinc die casting
- Injection molds in plastic
- Extrusion dies and tools
- Forging dies
- Accurate CNC parts
CNC Machining Tool Steel H13 | 1.2344 | X40CrMoV5-1
We specialize in CNC machining tool steel H13 using advanced milling, turning, and EDM processes to deliver parts with tight tolerances and excellent surface finishes. Our in-house engineers are familiar with the specific challenges of the machinability of H13 steel, particularly in its annealed and heat-treated states.
Advantages of CNC Machining H13 Tool Steel:
High temperature has geometric accuracy. Preserves geometric reference at high temperatures
- Suitable for intricate mold and die architecture
- Decreases deformation when subjected to heat treatment
- Improves Tool life and performance
Producing high-run tooling inserts or specialized die components, we provide machined H13 components delivered on time and to the tightest specification.
H13 CNC Machining Parameters
It is essential to get acquainted with the correct machining conditions of H13. Although this steel is fairly machinable when annealed, once it has been hardened, it is more difficult to machine.
- Cutting Speed: 25-35m/min
- Feed rate: 0.05- 0.2 mm/rev
- Hardness( Annealed ) : ~ 200 HB
- Coolant: Thermal control uses a flood coolant
- Tool Material: Carbide is a better choice for tool life
For CNC machining X40CrMoV5-1, we adjust speeds and feeds based on the tool geometry and hardness level to ensure dimensional accuracy and surface quality.
Tool Steel H 13 Datasheet Key Properties
| Property | Value |
| Standard | DIN 1.2344 / AISI H13 |
| Condition | Annealed |
| Hardness | Approx. 200 HB |
| Composition | Cr: 5.0%, Mo: 1.3%, V: 1.0% |
| Max Operating Temp | 600–650°C |
| Delivery Form | Round, Flat, Custom-cut sizes |
Advantages of H13 Tool Steel Manufacture
Tool Steel H13 | 1.2344 | X40CrMoV5-1 – Annealed is peculiar because of the following:
- Thermal resistance as high as 650 o C
- Astounding shock and wear life
- Conduct consistency following hardening and tempering
- Hot work and cold work tool flexibility.
- Precision components, Machinability stability
These attributes make it a reliable choice for CNC machining 1.2344 hot-work steel in both prototype and production stages.
Choose Accuracy and Performance Together at MYT Machining
Tool Steel H13 | 1.2344 | X40CrMoV5-1 – Annealed state is the industry-standard solution for hot-work tooling and high-performance CNC machining applications. Our numbers could be building die inserts or specific high-stress components; our annealed H13 product provides the perfect starting point.
Team up with MyT Machining to avail professional advice, top-quality materials, and precision machining services that adhere to the supreme standards in the industry.
Want to Place an Order or Get a Quote?
Contact MyT Machining today to discuss your project requirements for Tool Steel H13 | 1.2344 | X40CrMoV5-1 – Annealed state. Our technical team will offer material selection, machining choices, and rapid lead times.
FAQs About CNC Machining Tool Steel H13
Q1: Can H13 tool steel be used in high-heat applications?
Yes, H13 tool steel’s high-temperature resistance makes it perfect for applications like die casting, forging, and hot extrusion.
Q2: Do you machine heat-treat H13?
Yes, we offer heat-treated H13 CNC machining, but it requires specialized tooling and slower feeds to ensure surface finish and tool life.
Q3: In comparison to other steels of tool steels, how does H13 fare?
H13 is an exceptionally strong, wear-resistant, and thermally stable steel that can surpass numerous other hot-work steels.
Q4: What is the machinability of H13 steel in the annealed state?
H13 can be machined more easily in its annealed state and has a machinability rating of approximately 50 percent that of standard steels.
Q5: How can I find H13 machining data?
We provide a comprehensive CNC machining H13 tool steel datasheet for all material and process specifications.
